● Overview
Electric actuator in automatic control system , according to the change control instrument signal to adjust an instrument to manipulate change mechanism ( valve ) of displacement .

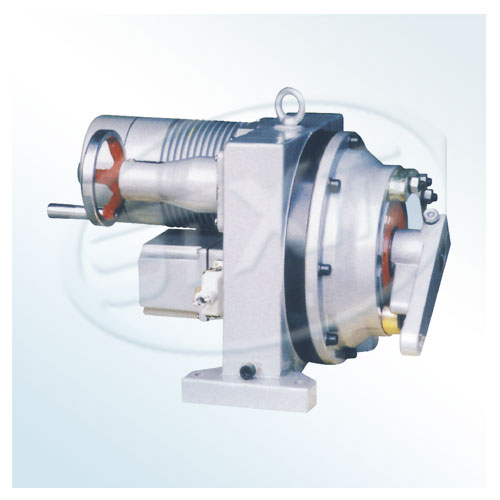

DKJ type rotary electric actuator can be used with transmitters, regulators and other instruments supporting the use of its power as the power to accept 4 ~ 20mADC or 0 ~ 10mADC signal , this input signal is converted into the corresponding corner displacement ,
Automatically operated dampers , butterfly valves, ball valves and other regulatory agencies to complete the task of automatic adjustment , or equipped with electric operation to achieve remote manual control , the instrument
Table can be widely used in power plants , steel mills , chemical industry, light industry and other industrial sectors conditioning system .
The instrument has a continuously adjustable , remote manual control and local hand operation three control methods .
The instrument for non-corrosive gases , the ambient temperature is -25 ℃ ~ +70 ℃, relative humidity ≤ 95% of the sites.
● The main technical parameters
Input signal : 0 ~ 10mADC, 4 ~ 20mADC
The output shaft torque : see table below
Input resistance : 200Ω (Ⅱ type ), 250Ω (Ⅲ type )
Input channels: 3 ( electrically isolated )
Basic error : ± 2.5%
Hysteresis : ± 1.5%
Dead zone : ≤ 3%
Power supply voltage : 220V.AC, 50Hz
The output shaft angle range : 0 ~ 70 °, 0 ~ 90 °
Environmental conditions : a, ambient temperature: servo amplifier 0 ~ 50 ℃, the implementing agencies -25 ℃ ~ +70 ℃ b, Relative Humidity: servo amplifier 10 % to 70% , the executing agency ≤ 95%
